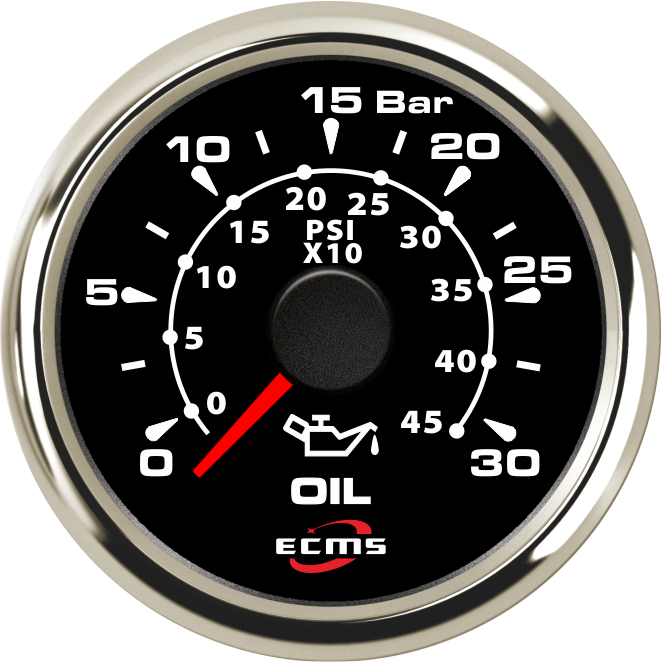

Olietryksmåler, 0-30 bar. inkl. elektronisk føler, 0,5-4,5V, NPT-1/8" gevind
Product information:
Operating voltage 9~32VDC
Input gauge: 0.5~4.5V, range:0~30 bar - Output sensor: 0.5~4.5V, range:0~30 bar
Fixing dimension 52mm
Protection grade IP67 (the whole body is completely waterproof)
Operating temperature -30°C ~ +75°C
Excellent antifogging function
Stepper motor drive operating usage <60mA.
316 Stainless steel bezel with curved mineral glass
Convenient Installation by multi-plug socket connecting way
Eight different colors of background light can be choosen
CE certification
Accessories: Installation Instructions and wires
